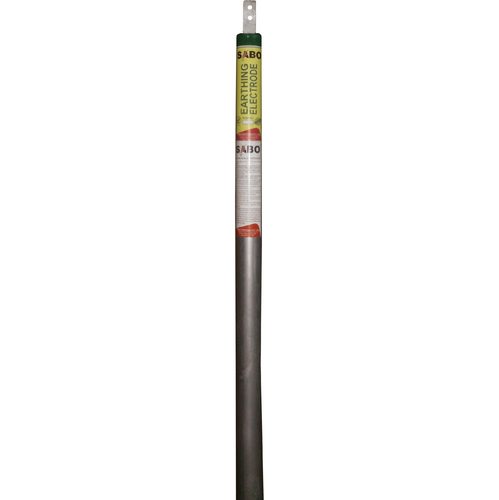

GI Earthing Electrode

GI Earthing Electrode

Product Details:

  • Product Type Earthing Electrode
  • Application Industrial
  • Frequency (MHz) 50 Hertz (HZ)
  • Color Silver Grey
  • Dimension(L*W*H) 80x50 Millimeter (mm)
2000 INR/Piece

Price And Quantity

  • 1 Piece
  • 2000 INR/Piece

Product Specifications

  • Industrial
  • 50 Hertz (HZ)
  • Silver Grey
  • Earthing Electrode
  • 80x50 Millimeter (mm)

Trade Information

  • Lucknow
  • Cheque, Telegraphic Transfer (T/T)
  • Yes
  • If order is confirmed we will reimburse the sample cost
  • All India

Product Description

Our clients can choose from a wide range of Earthing Electrodes. These products are utilized for the improvement of conductivity of the earth electrode and ground contact area. High grade raw materials are utilized in the manufacturing process. The in-house manufactured chemical earthing is available at the most affordable rates to our clients.

Earthing Electrodes Features:


  • High conductivity and corrosion resistance
  • Improved resistivity
  • Ideal to be installed in dry form or in a slurry form
  • Maintenance free and in its set form, maintains consistent earth resistance throughout its life time
  • Throughout its lifetime, it does not dissolve, decompose or leach out
  • No periodic charging treatment nor replacement and maintenance are required
  • Apt for any kind of electrode
  • Does not cause soil or water pollution
  • Meets all requirements for landfill
  • Does not cause any burn, eye irritation, skin irritation, etc.


FAQs of "Earthing Electrode":

Q: What is an earthing electrode?
A: An earthing electrode is a device that is buried in the ground and used to create an electrical connection to the earth. It is designed to provide a low impedance path for fault current to flow to the ground in case of an electrical fault.

Q: Why is an earthing electrode necessary?
A: An earthing electrode is necessary to protect people, equipment, and structures from electrical hazards. It helps to prevent electrical shocks, fires, and damage to electrical equipment due to lightning strikes, power surges, and other electrical faults.

Q: What are the types of earthing electrodes?
A: The most commonly used types of earthing electrodes are copper electrodes, galvanized steel electrodes, and earthing rods made of a combination of materials such as copper-clad steel or stainless steel.

Q: How deep should an earthing electrode be installed?

A: The depth of an earthing electrode depends on the type of soil and the type of electrode being used. Generally, the electrode should be buried at a depth of at least 2.5 meters (8 feet) in soil with good moisture content.

Q: How can I test the effectiveness of an earthing electrode?
A: There are a variety of tests that can be conducted to measure the effectiveness of an earthing electrode, such as a fall-of-potential test, a clamp-on test, or a soil resistivity test. A licensed electrician or electrical engineer can perform these tests to ensure that the earthing system is working properly.

Q: Can an earthing electrode be installed in a building?
A: Yes, an earthing electrode can be installed in a building, but it should be connected to an earth pit or an external earth electrode in the ground. It is important to ensure that the electrode is properly installed and connected to the electrical system to provide effective earthing protection.
